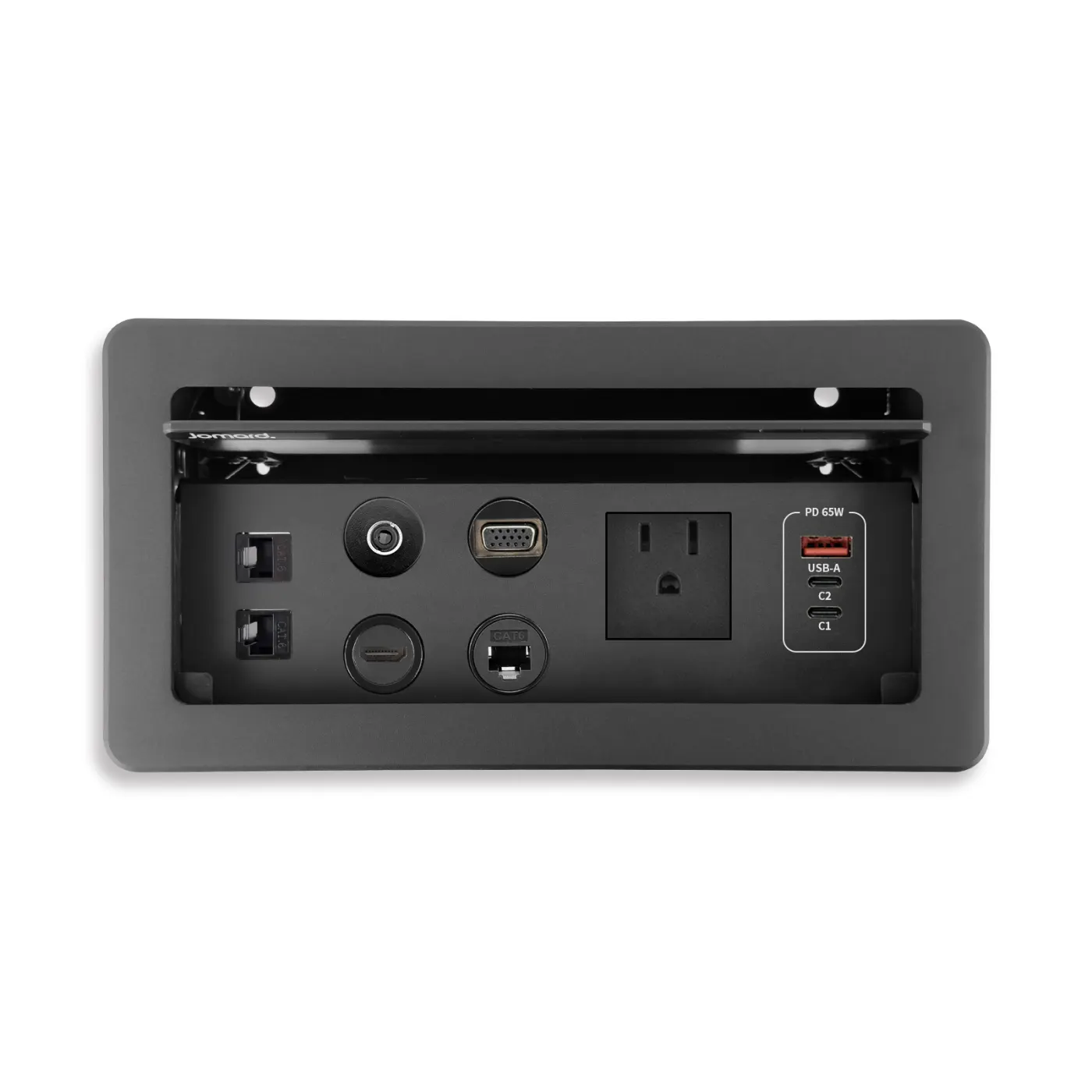

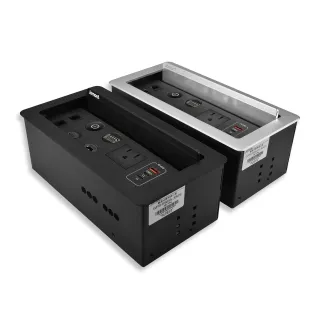

Jomard / WPB-B/S655-3000/3100 / Desktop Interface Box

Customizable Conference Table Power Module Data Port Connectivity Box

Name: Customizable Conference Table Power Module Data Port Connectivity Box
Brand: Jomard
SKU: WPB-B/S655-3000/3100

Slidable Power Supply

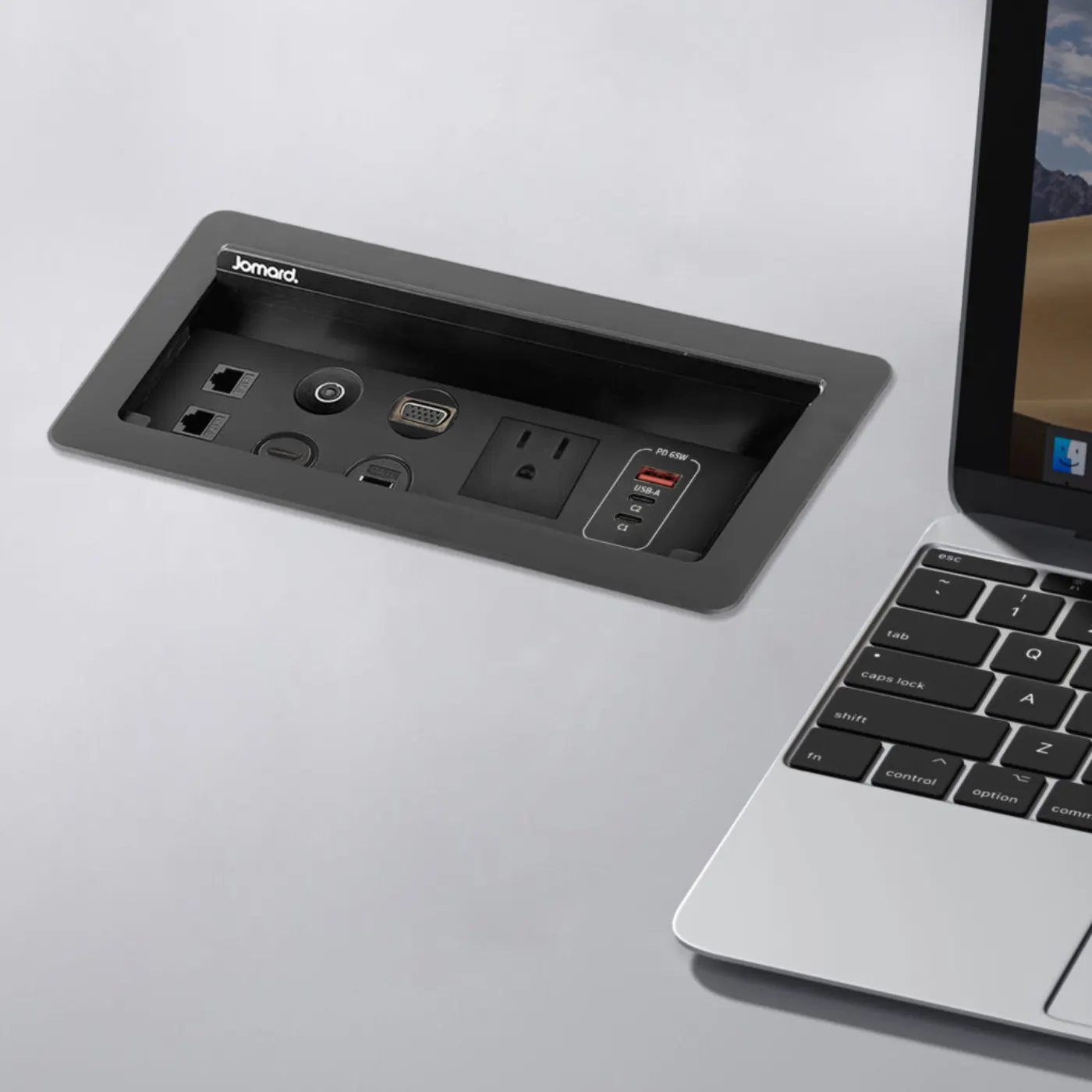

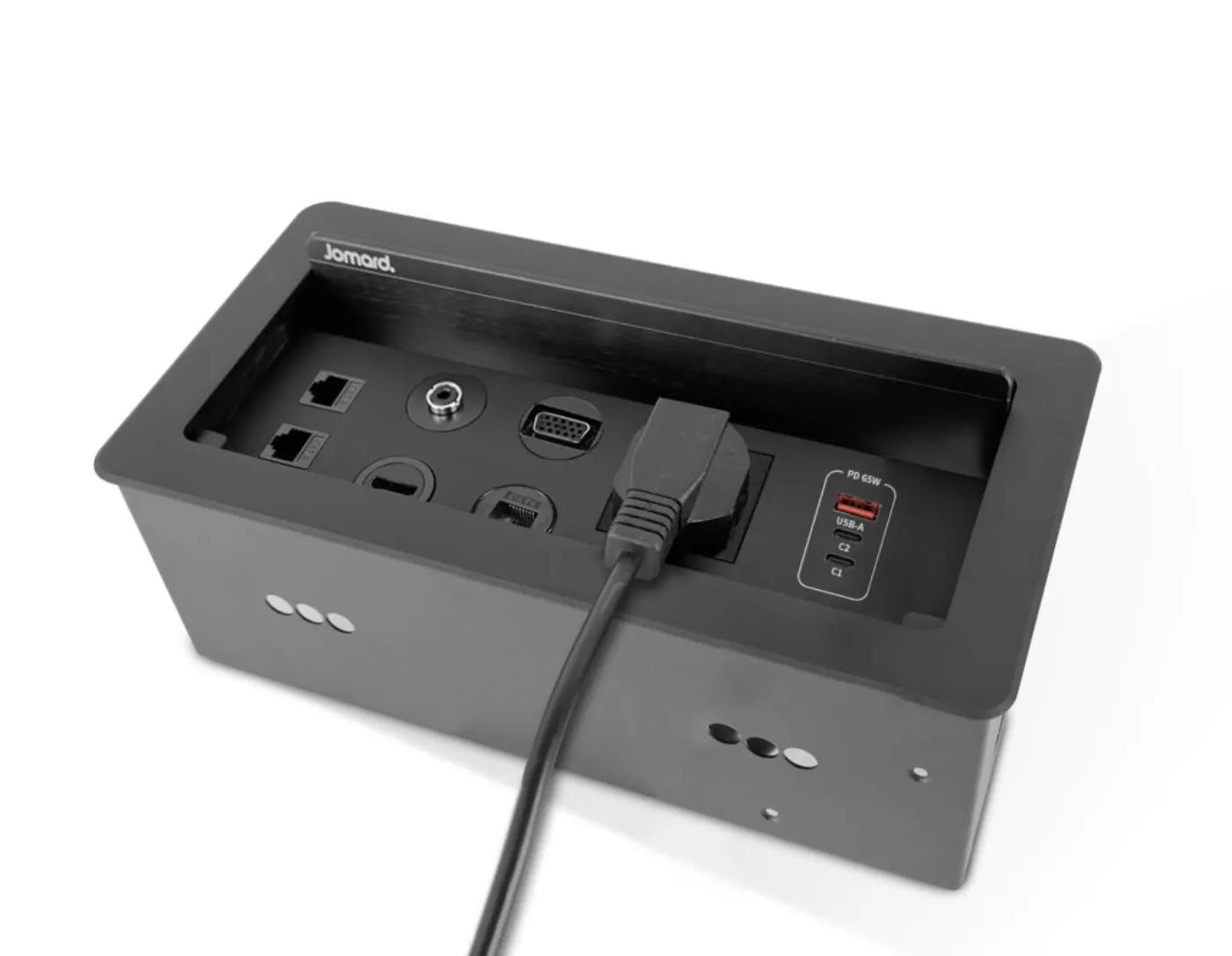

Jomard New Flip Media Interface Box is an improved and developed version based on the original product, which better solves the problems encountered by users, and enhances reliability, suitability, and convenience to use. It can be concealed in a desktop installation and features modular combinations, effectively addressing the simple, organized, and aesthetic connection of various peripheral cables. The flip type sunken and concealed decorative panel is adopted to maintain a sleek and tidy appearance in use. It is suitable for various conference systems, academic exchanges, information management, network offices and various exhibition presentations.

Request a quote →Chat on Zalo

Key features

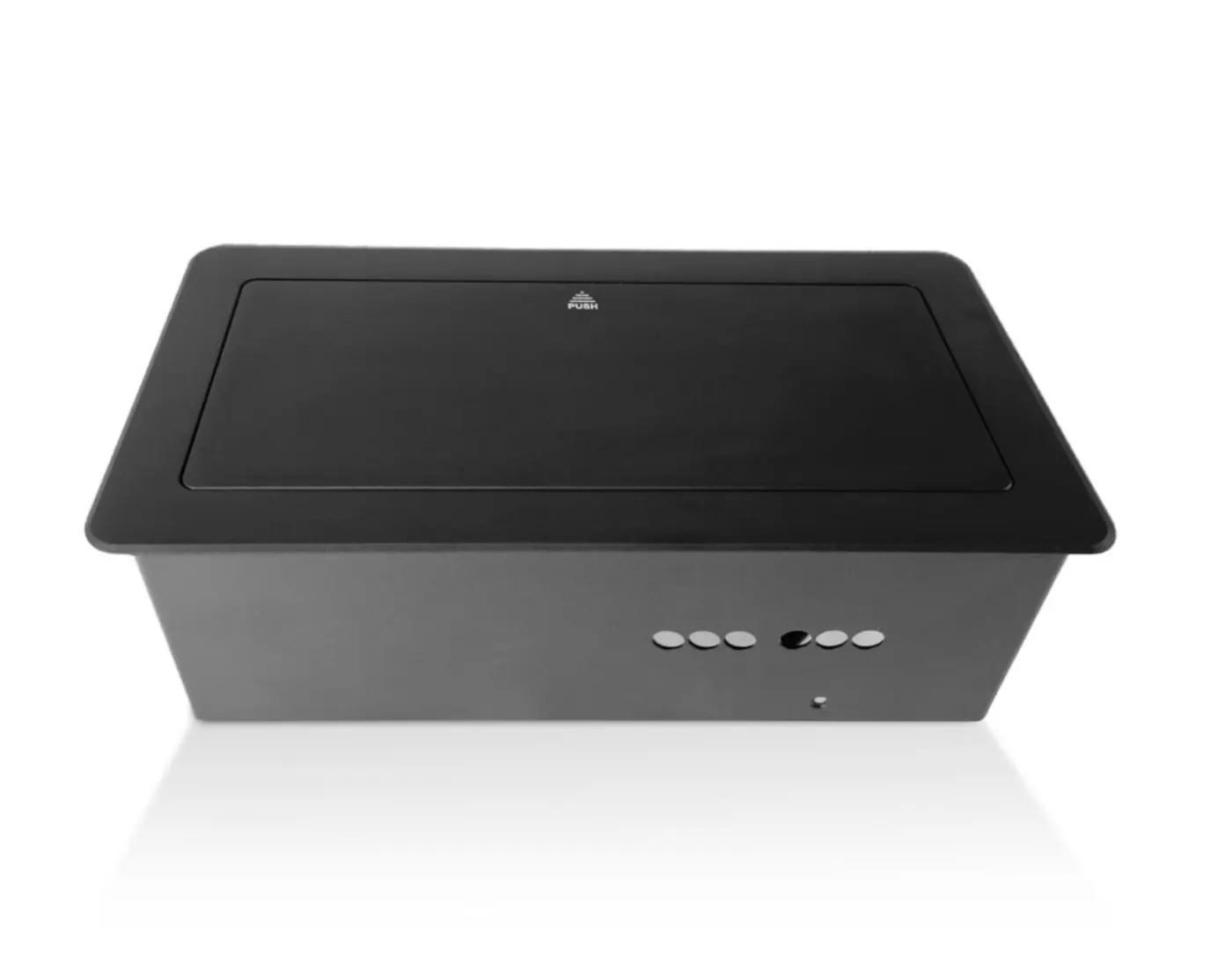

01Design of the recessed cover plate allows it to be hidden inside the box after being opened, no longer occupying desktop space and not blocking the line of sight.

02Slidable Power Supply

03Patented Structure SOF®

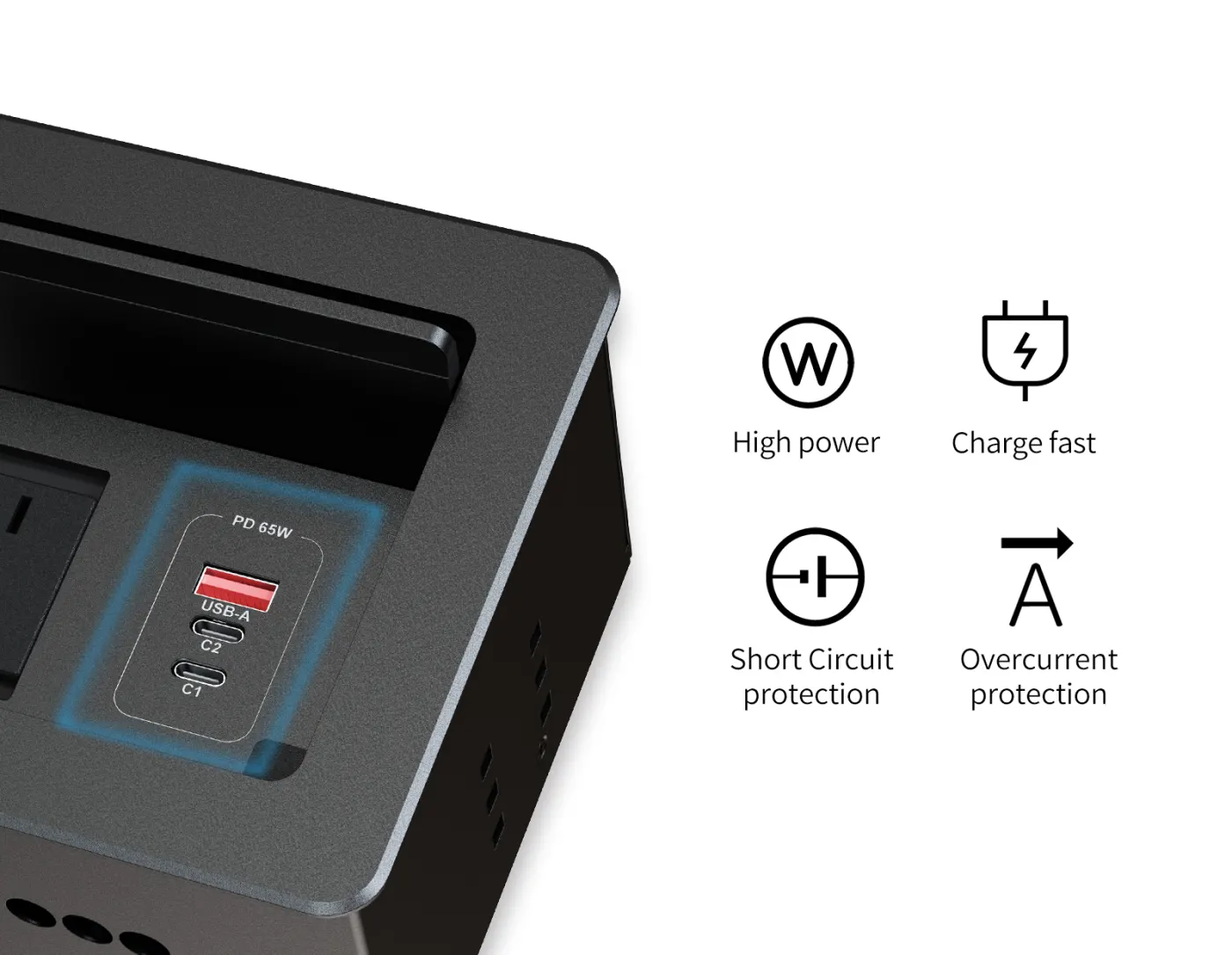

0465W Gallium Nitride module: The third generation of new semiconductor material.

05The box body is provided with a wiring hole: Convenient power access.

06Side-mounted fixing clip fixes the box to the furniture: Applicable desktop thickness ≤ 65mm; After tightening the M6 furniture screws upward with a crosshead screwdriver, then tighten the wing nuts by hand.

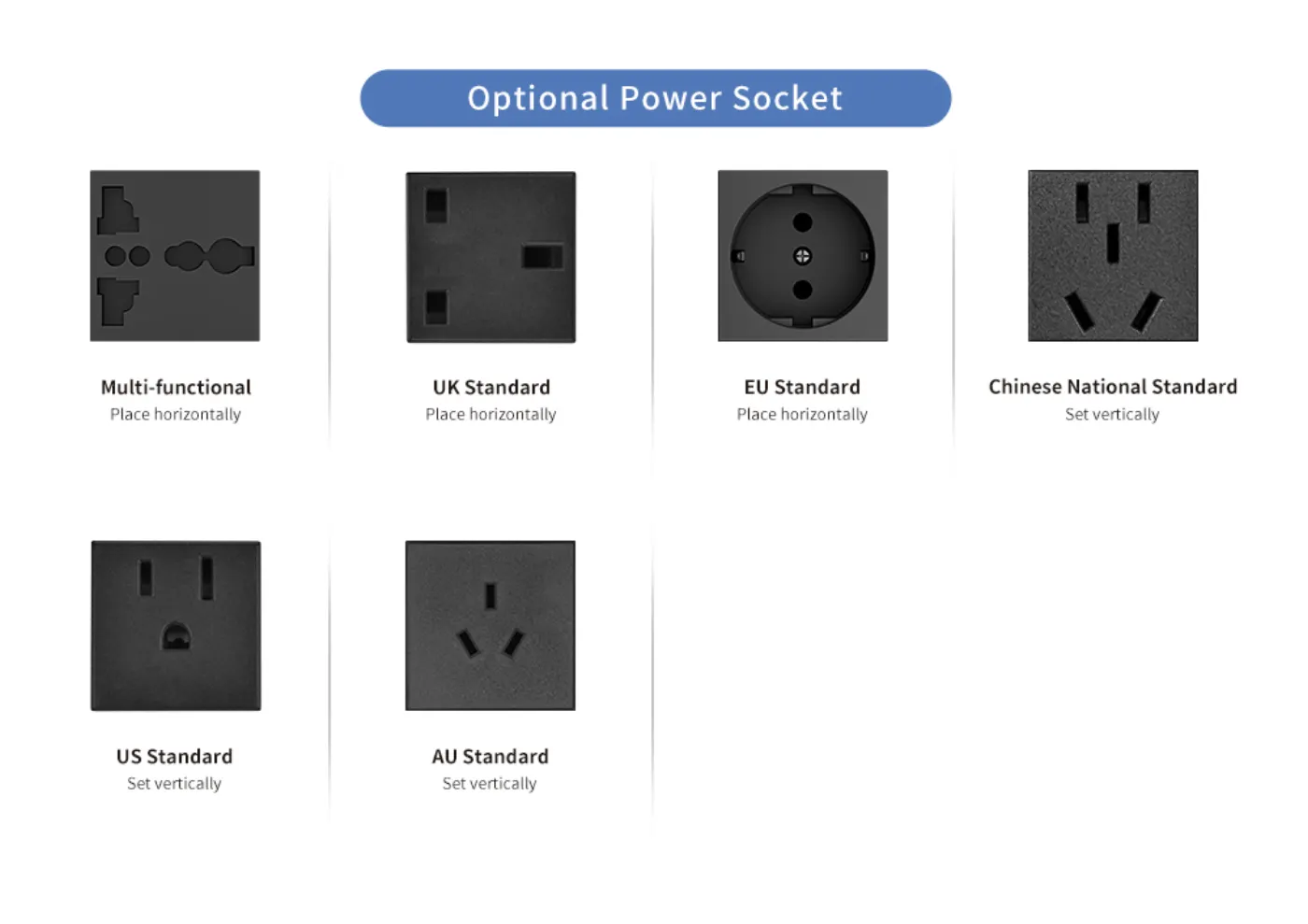

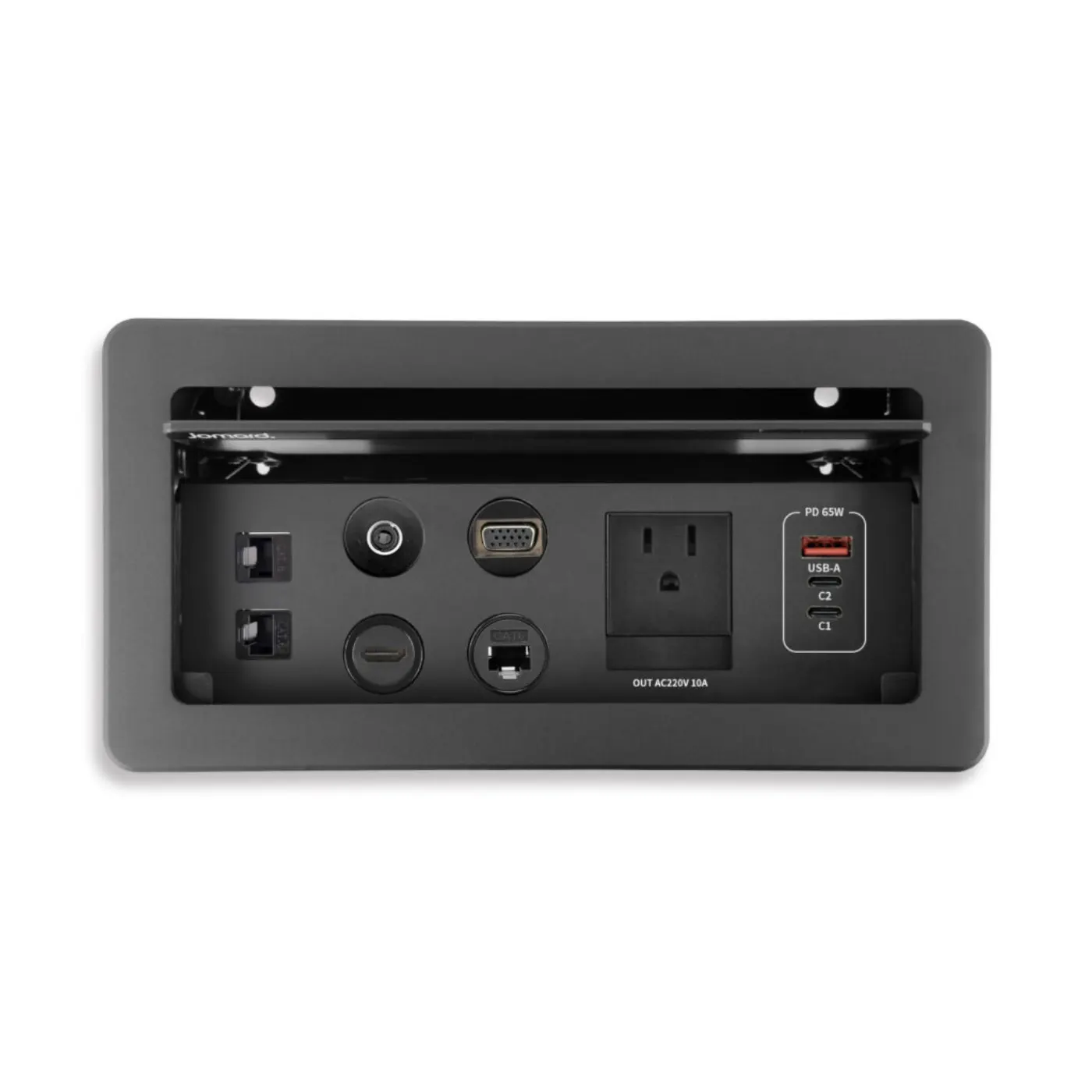

070ptional slidable power supply /fixed power socket: US Standard、AU Standard (Set vertically)

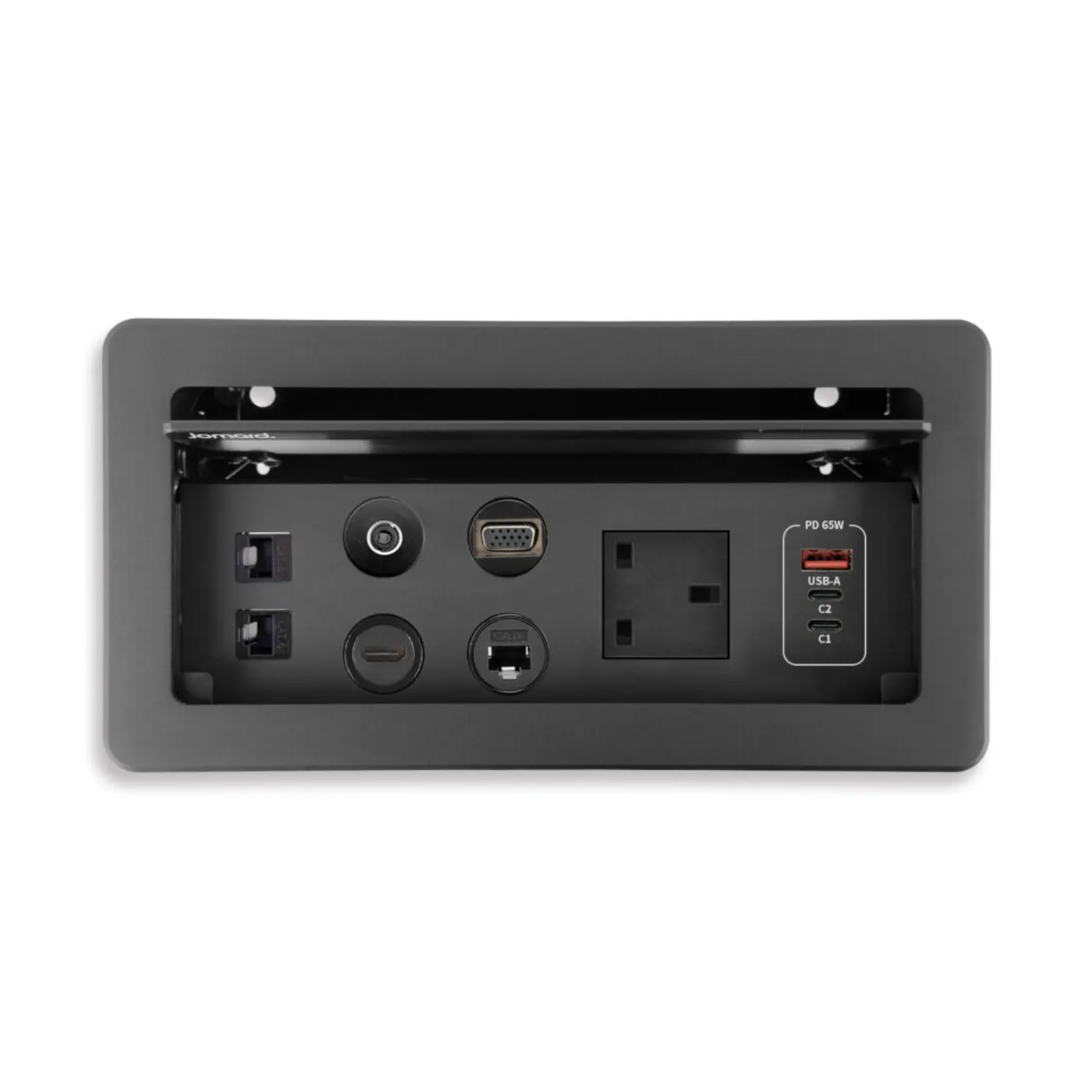

08Optional fixed power socket: Universal power supply、 UK Standard、EU Standard (Place horizontally)

09Specifications: WPB-B/S655-3000/3100

TECHNICAL PARAMETERS

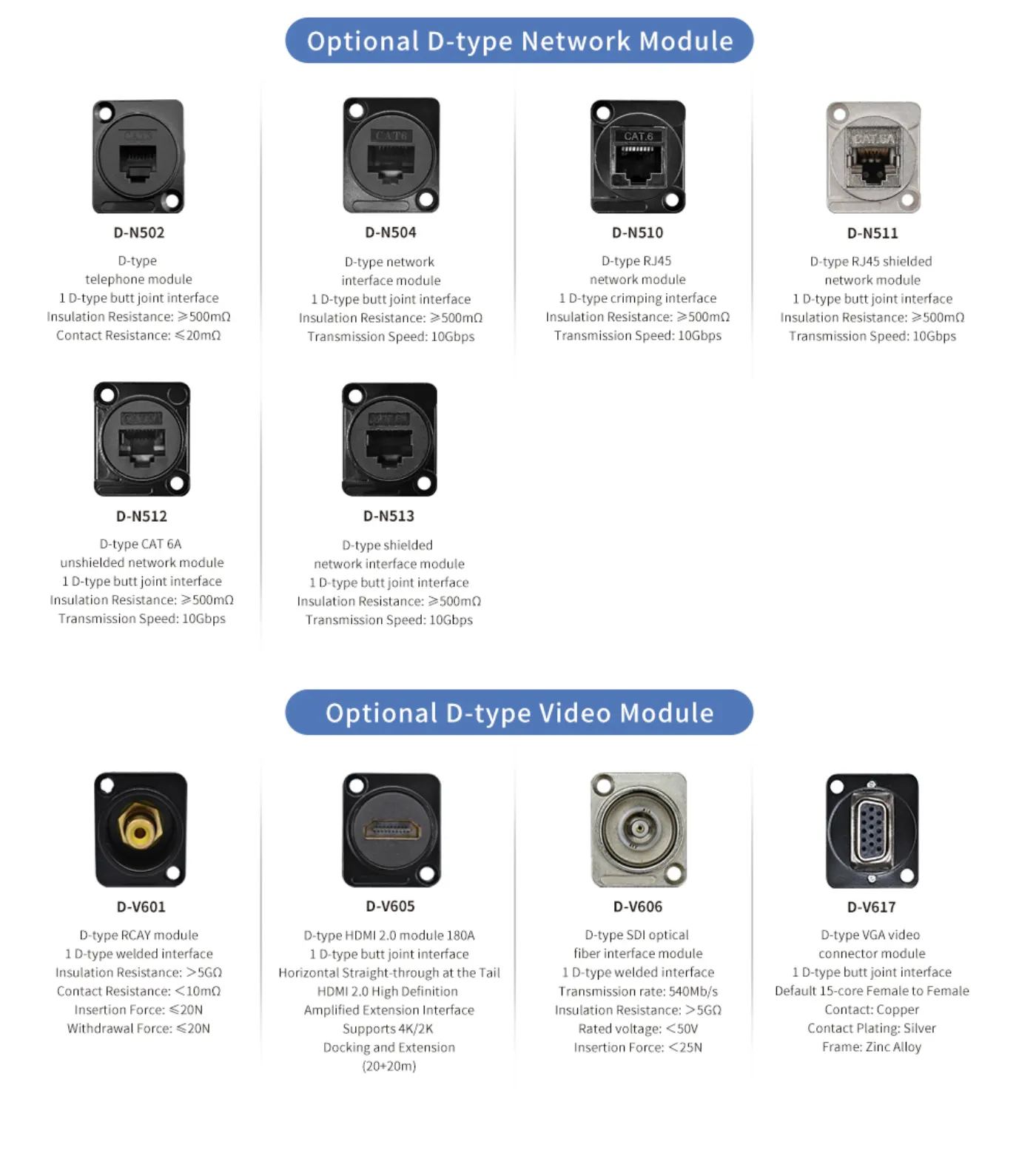

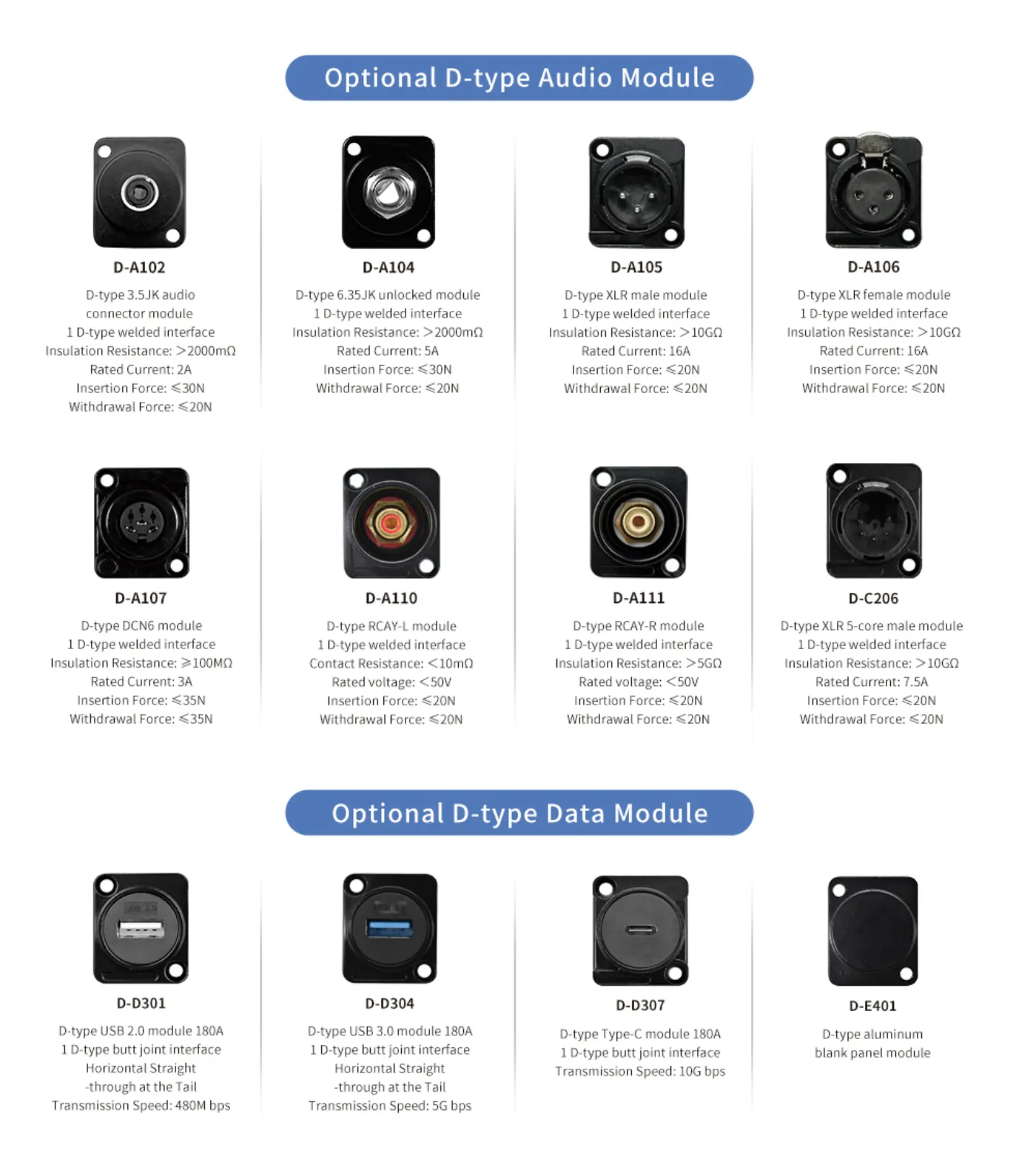

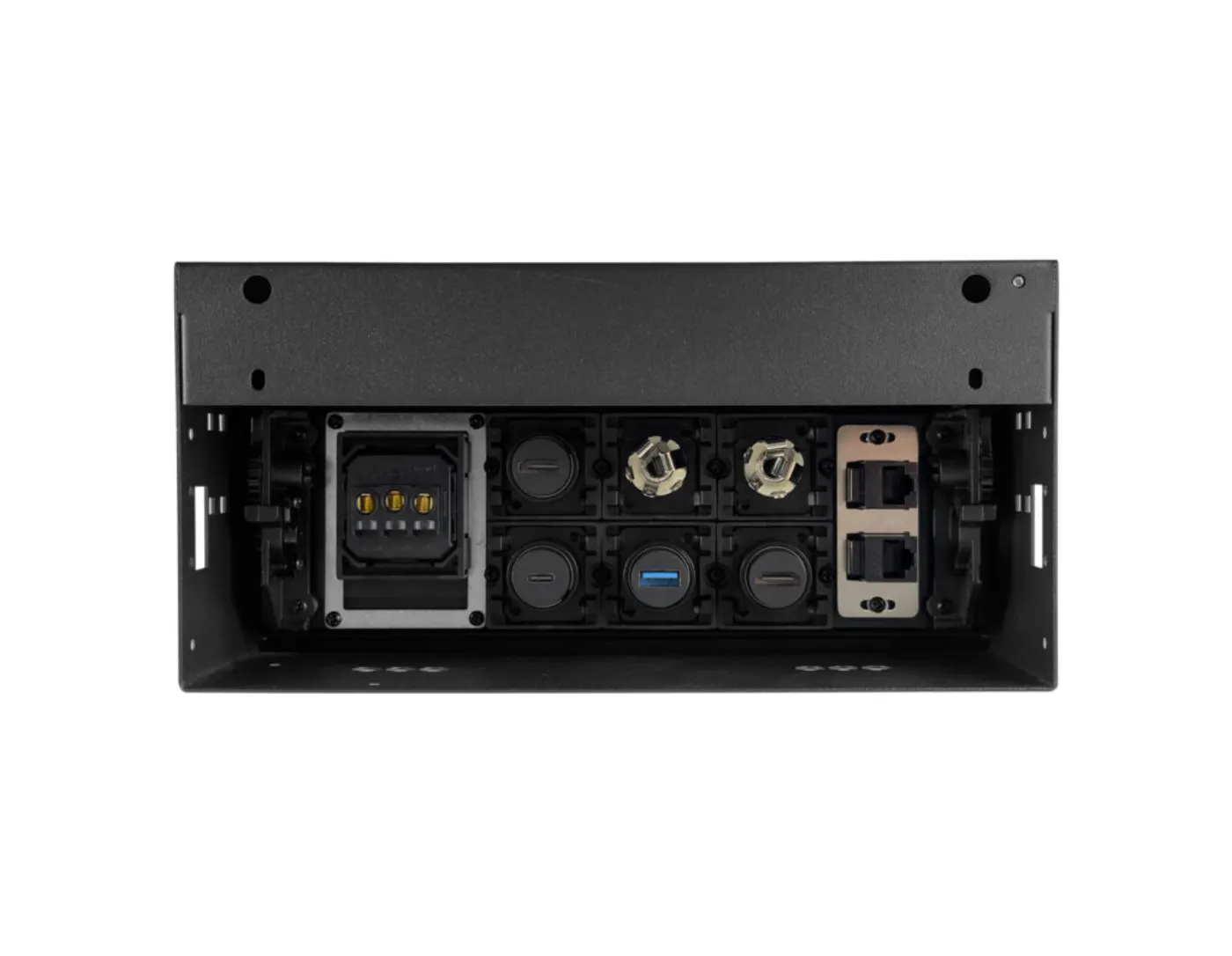

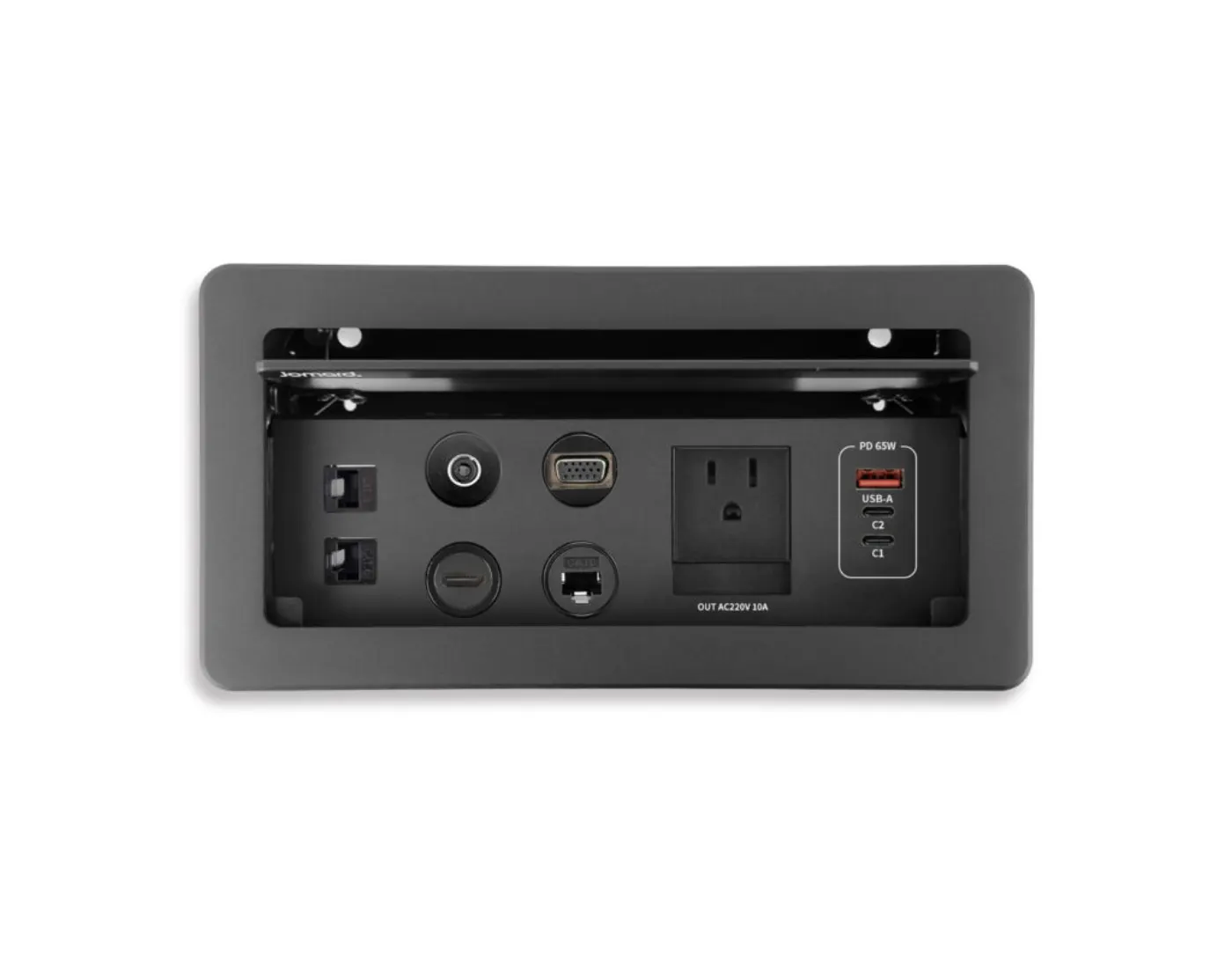

Configuration: 1 Optional power socket,1x65W GaN module， 4 optional D-type interface modules，2 fixed network modules

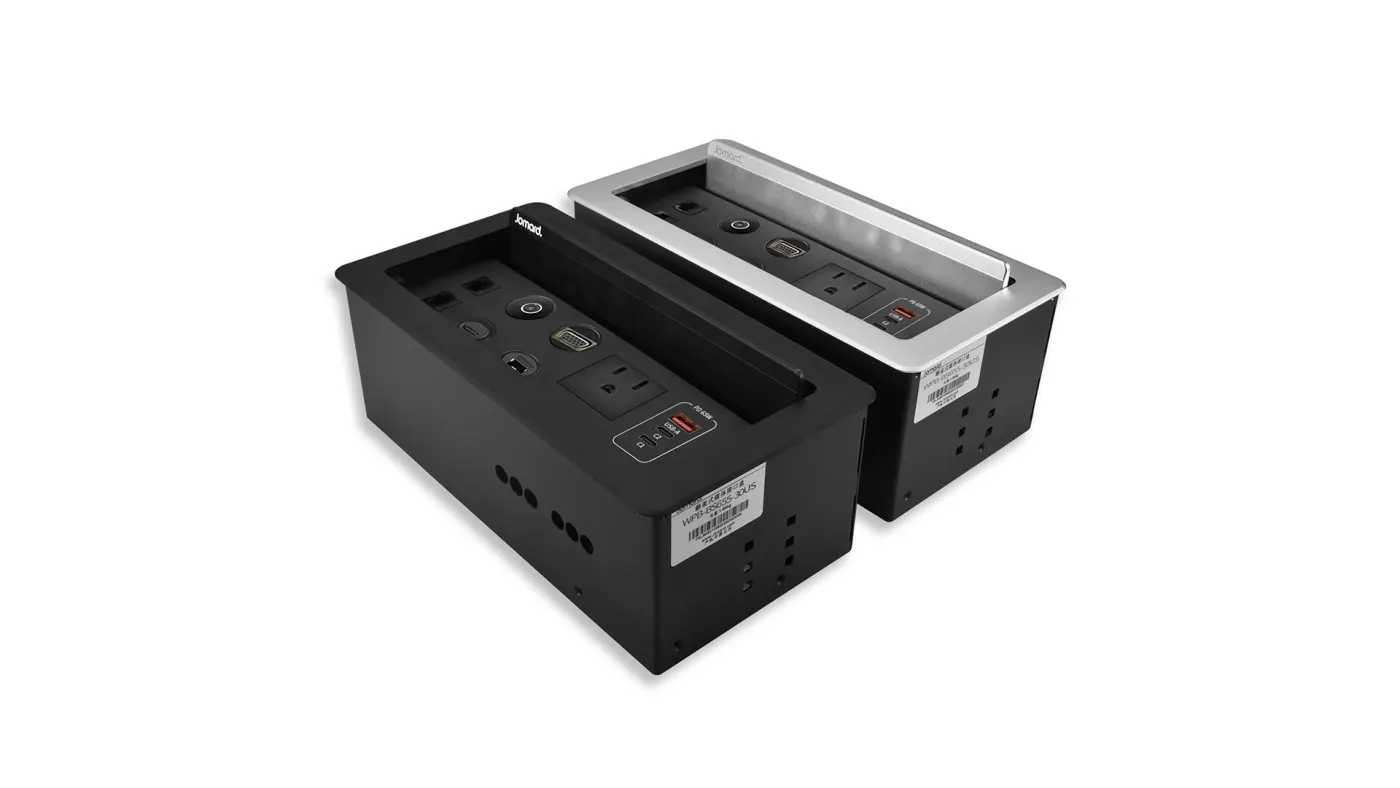

Box size: 254×130×90mm
Panel size: 254×130mm
Hole size: 247×122mm
Applicable desktop thickness: ≤30mm
Net weight: 1.95kg
Gross weight: 2.14kg

OPTIONS

Power Modules: Fixed Sliding

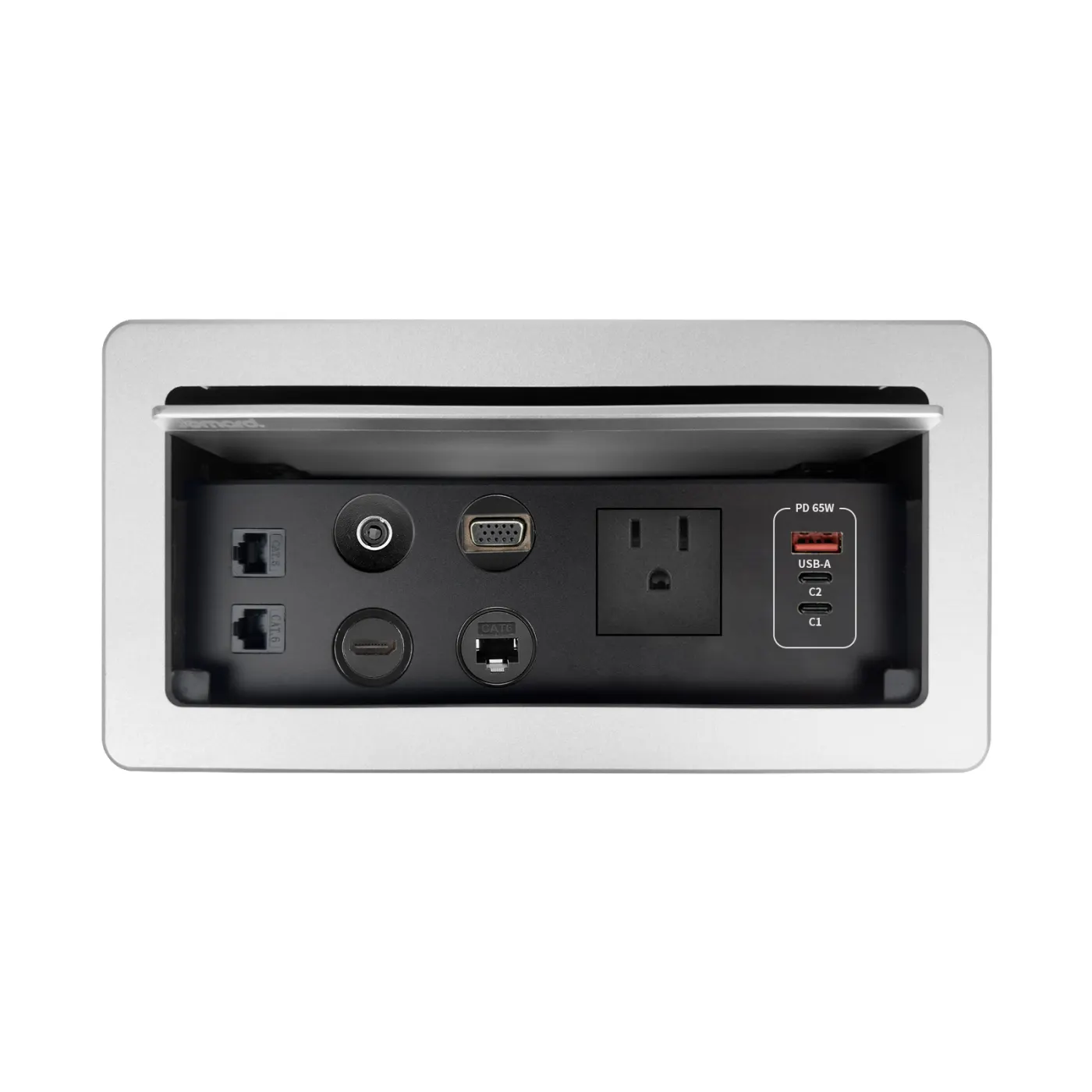

Color: Black Silver
