Network cabling

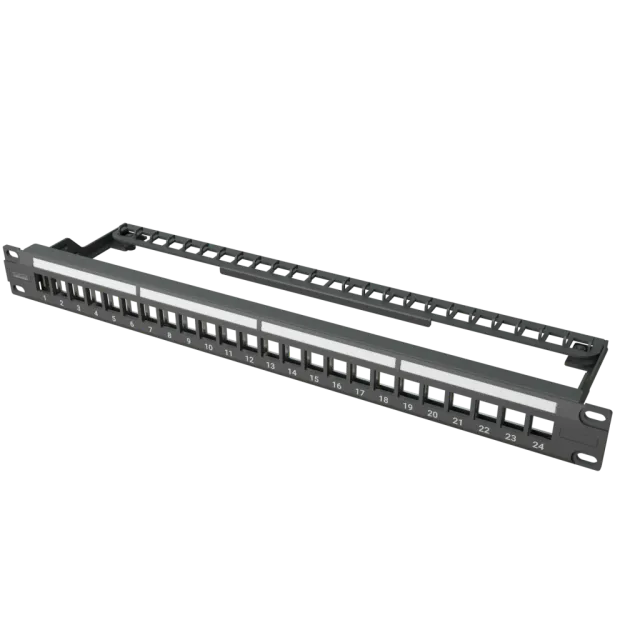

Cat6 / Cat6A bulk cable for indoor, outdoor and direct burial; patch cords, keystones, crimp connectors and patch panels for network, HDBaseT and PoE infrastructure.

Choose network cable by speed, distance and routing space

Cat6 covers 1Gbps networks and typical HDBaseT; for 10Gbps over longer runs choose Cat6A. Standard-size cable (ONE series, 23–24AWG) runs to 100m; ultra-slim SlimCat (28AWG) is nearly half the size, ideal for tight conduit and dense racks, but is limited to about 50m. Outdoors use a UV-resistant PE jacket; underground use direct-burial cable with water-blocking gel.

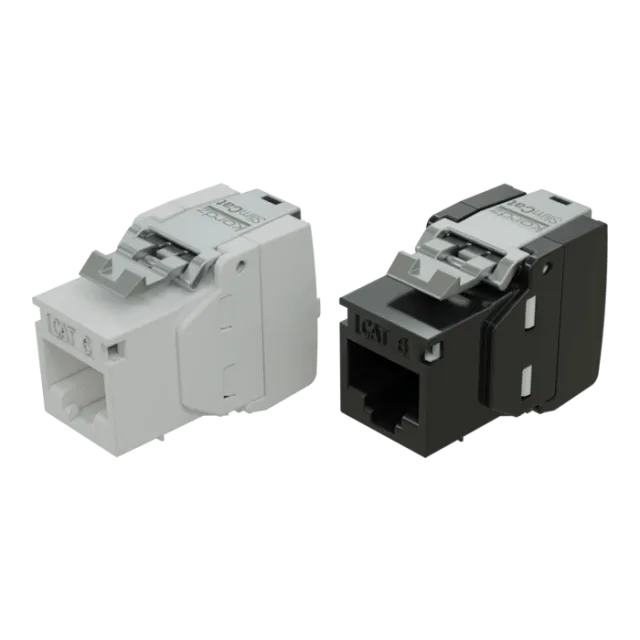

Match connectors to conductor size: SlimCat 28AWG cable pairs with SlimCat keystones and crimp connectors; ONE 24AWG cable pairs with 24AWG crimp connectors (PRO or ONE push-through); ONE Cat6A 23AWG cable pairs with PRS tool-less Cat6A plugs and keystones.

Series	Standard	Conductor · diameter	Speed & distance	Use when

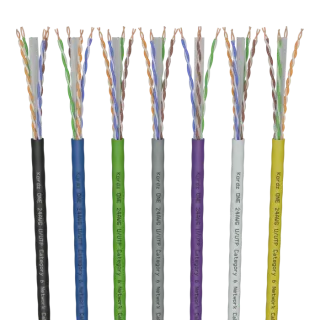

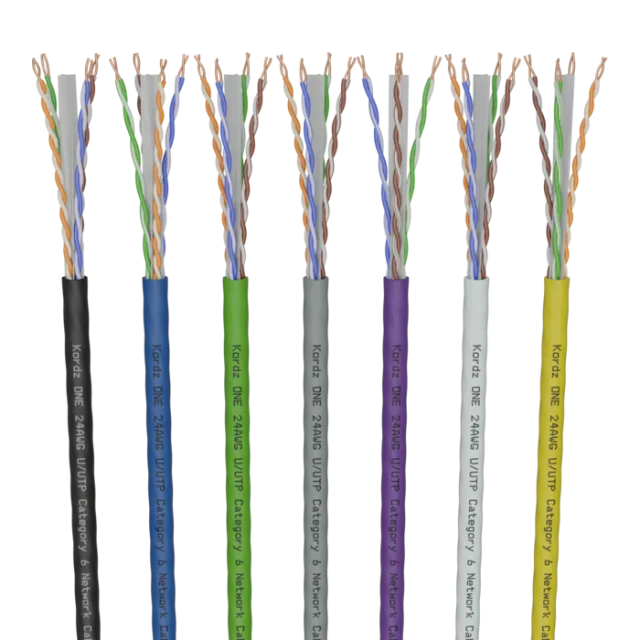

ONE-CAT6	Cat6 U/UTP	24AWG OFC	1Gbps to 100m · 10Gbps to 55m	Indoor network, HDBaseT, PoE++

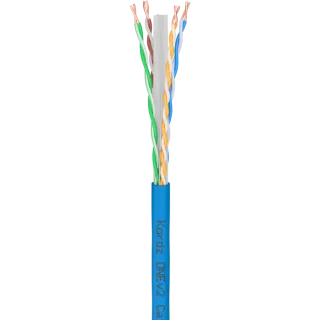

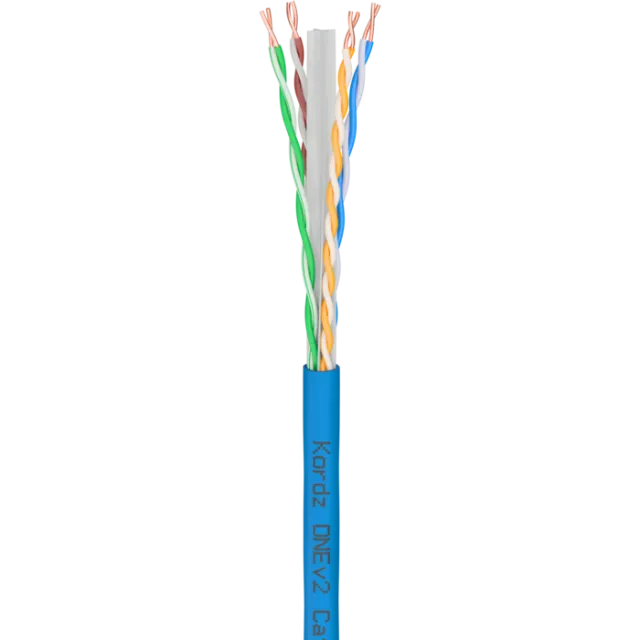

ONEv2 Cat6 U/UTP Network Cable	Cat6 U/UTP	24AWG OFC	1Gbps to 100m · 10Gbps to 55m	As above, CPR Eca jacket

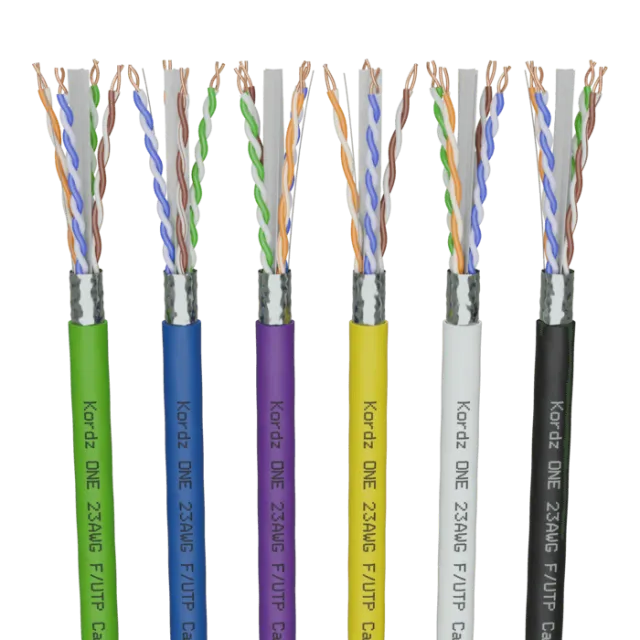

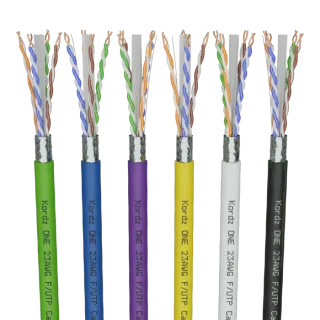

ONE-CAT6A	Cat6A F/UTP	23AWG OFC	10Gbps to 100m	10Gbps over long runs, shielded

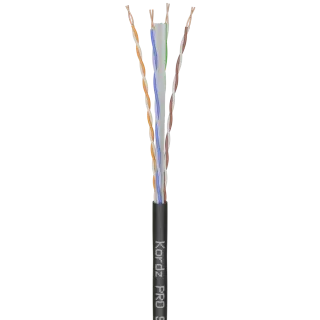

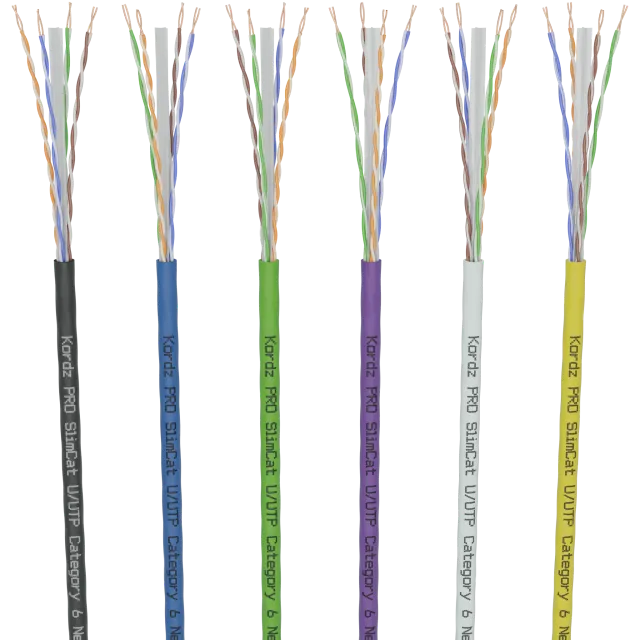

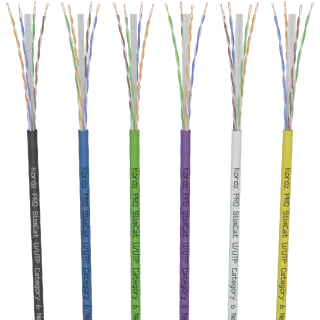

PRO-SC6	Cat6 U/UTP	28AWG · Ø4.0mm	1Gbps to 50m	Tight conduit, dense racks

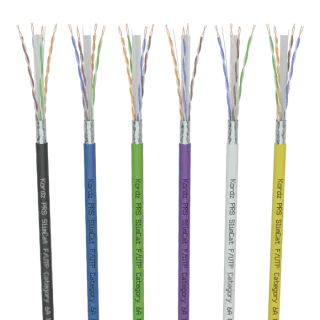

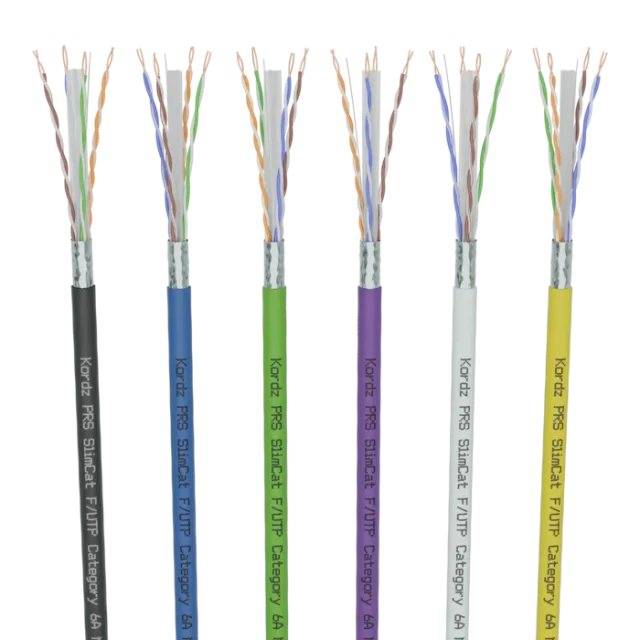

PRS-SC6A	Cat6A F/UTP	28AWG · Ø5mm	10Gbps to 50m	10Gbps in tight spaces, short runs

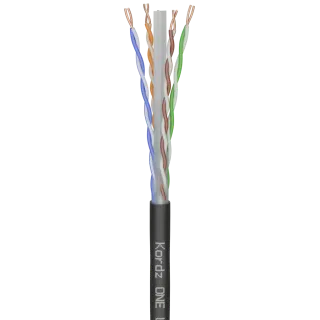

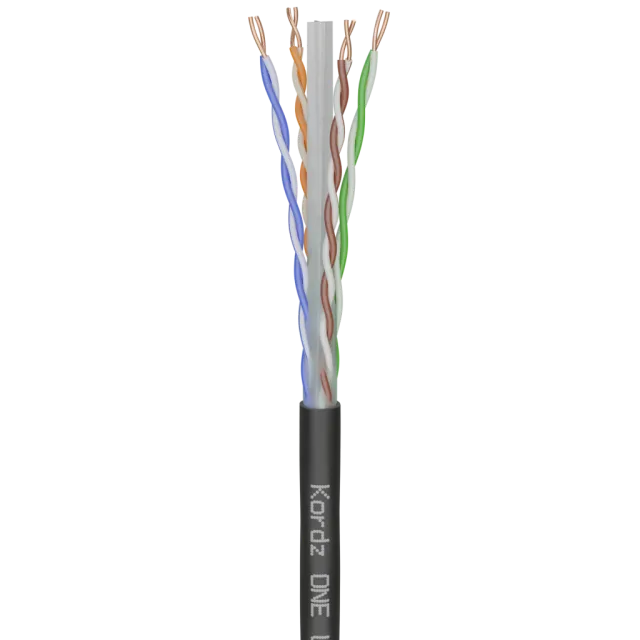

ONE-CAT6 OD	Cat6 U/UTP outdoor	24AWG · Ø5.4mm	1Gbps to 100m · 10Gbps to 55m	Outdoor IP cameras, Wi-Fi access points

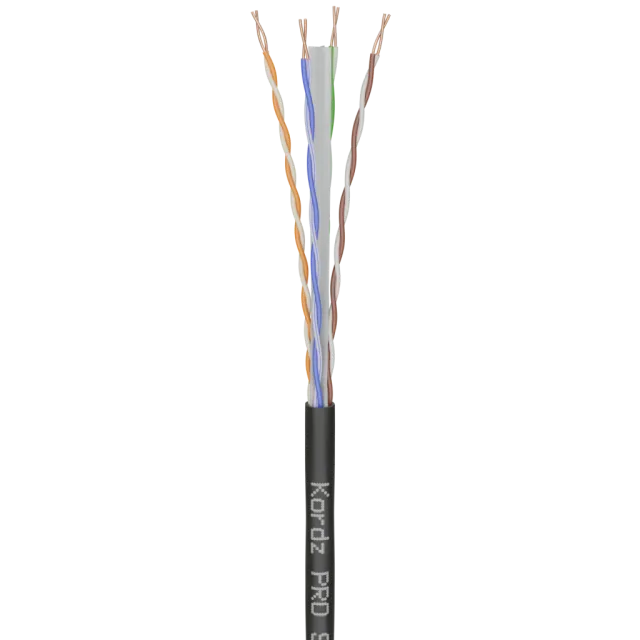

PRO-SC6 OD	Cat6 U/UTP outdoor	28AWG ultra-slim	PoE++ to 50m	Outdoors where a slim cable is needed

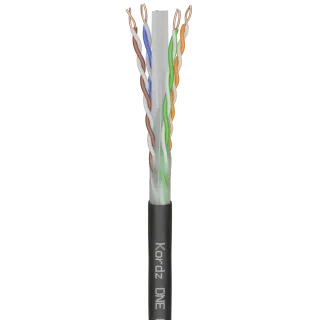

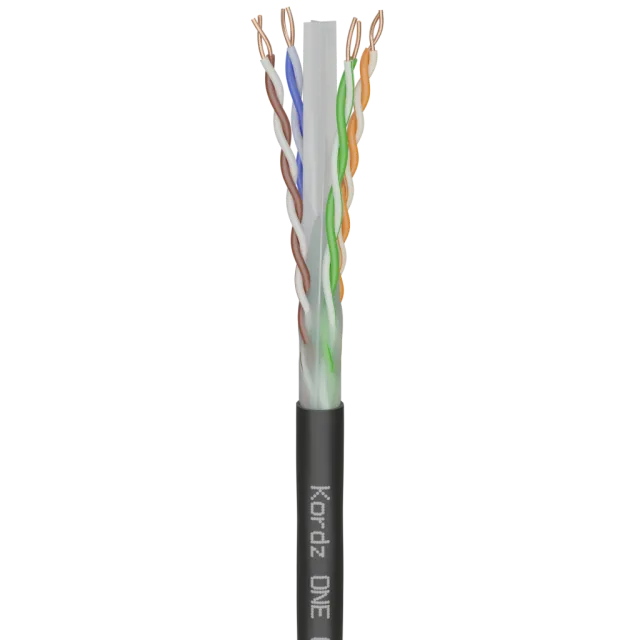

ONE-CAT6 DB	Cat6 U/UTP direct burial	24AWG · Ø6.3mm	1Gbps to 100m · 10Gbps to 55m	Buried directly in the ground

Distances are channel lengths as published by the manufacturer (ANSI/TIA-568.2-D). Outdoor and direct-burial cables carry a 5-year manufacturer warranty; indoor cables a lifetime warranty. Send Liza your network point plan for a matched cable and connector schedule.
