HDMI cables

Passive, active copper and active optical HDMI cables for 4K and 8K: choose by bandwidth, length and installation (in-wall, rack).

Choose an HDMI cable by bandwidth and length

Two questions decide it: how much bandwidth the signal needs (4K60 uses 18Gbps; 8K and 4K120 need 48Gbps) and how long the run is. Passive cables suit short runs; long runs use active copper or active optical (AOC) cables to keep the signal intact.

For in-wall runs choose a UL CMG fire-rated jacket; in tight racks choose short connectors with firm retention and fine length steps so there is no excess cable.

Series	Type	Bandwidth	Lengths available	Use when

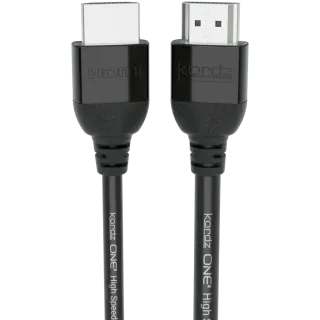

ONE-HD	Passive	18Gbps · 4K	0.5–5 m	High-volume projects at sensible cost

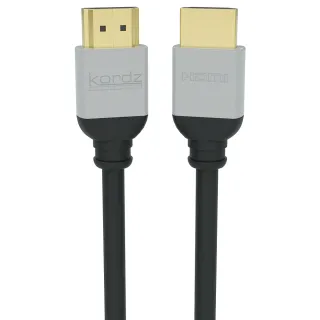

PRO3-HD	Passive	18Gbps · 4K60 HDR	0.5–9 m	4K devices in meeting rooms, 1 kg retention

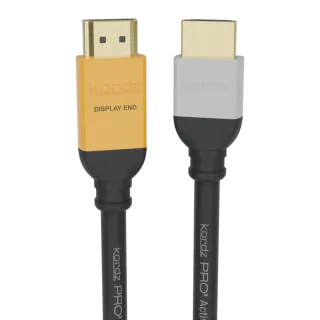

PRO3-HD	Active copper	18Gbps · 4K60 HDR	7.5–12.5 m	Longer 4K runs, no external power

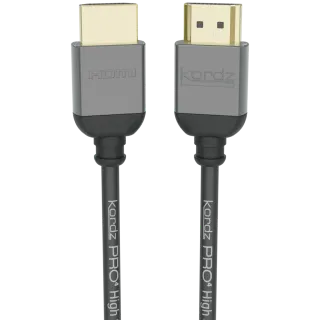

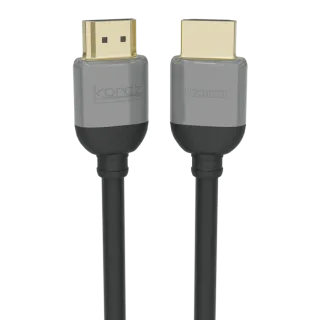

PRO4-HD	Passive	48Gbps · 8K60 / 10K60	0.5–9 m	8K and 4K120 sources and displays
PRS4 Passive HDMI® Cable	Passive	48Gbps	0.5–9 m	When a 2 kg die-cast connector is needed

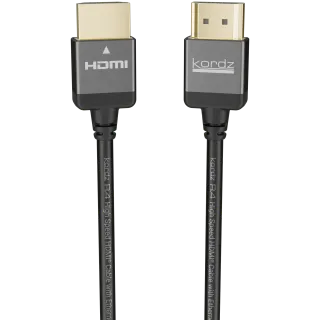

R.4-HD	Passive	48Gbps · 8K	0.3–3 m (0.3 m steps)	Rack dressing and marine; LSZH jacket

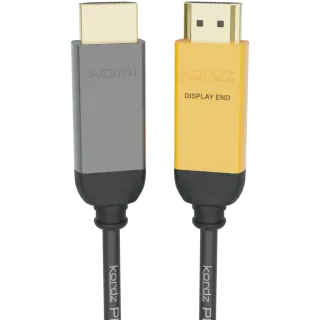

PRO4-HD	Active optical (AOC)	48Gbps · 8K / 10K	7.5–100 m	Long runs: halls, large rooms

The PRO-HD5VI HDMI 5V power injector feeds stable 5V into the HDMI port so active cables run reliably. Not sure which series to pick? Send Liza the source, display and run length.

HDMI cables– 8 products
